Connect Tech

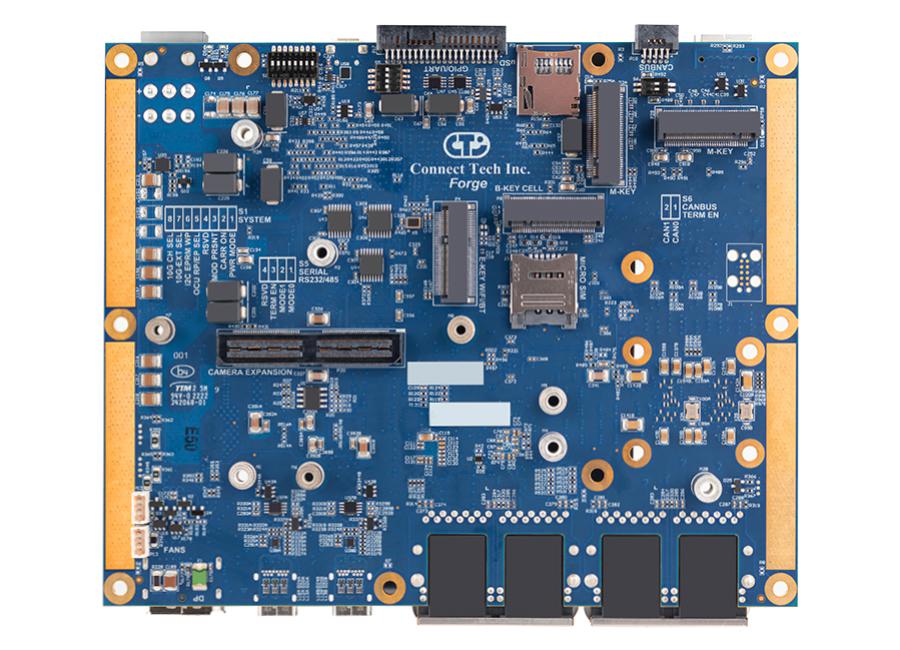

Connect Tech Forge Carrier Board
Part no. AGX201
$2,354.10inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
Forge is Connect Tech's first full-featured Carrier Board for the NVIDIA Jetson AGX Orin. This carrier board for Jetson AGX Orin and AGX Orin Industrial is specifically designed for commercially deployable platforms and has a small footprint of 155 x 125mm. Forge provides access to an impressive list of latest generation interfaces on the AGX Orin while adding interfaces of 3x USB 3.2, 2x GbE, Display Port and a locking 6-pin Mini-Fit Jr. power input connector. Rugged camera add-on expansion boards are also available for use with Forge to interface directly with high-density MIPI CSI interfaces. Integrations with external storage and WiFi/Bluetooth via Intel 8265 are also available.
- Commercially deployable NVIDIA Jetson AGX Orin and AGX Orin Industrial platforms
- 1 x 16-lane MIPI Expansion Connector
- 2 x NVMe M.2 Key M Slots, 2x USB 3.2, 2x GbE, 2x 10GbE
- Wide input power range 10-36V DC
