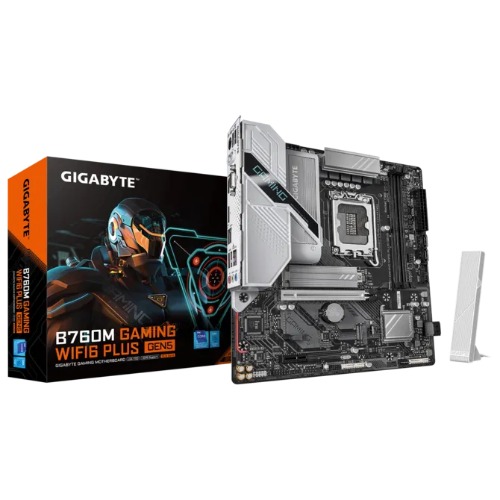

Gigabyte B760M GAMING WIFI6 PLUS GEN5 Intel LGA 1700 m-ATX Motherboard, 2xDDR5 ~128GB, 1xPCI-E x16, 1xPCI-E x1, 2xM.2, 4xSATA, 5xUSB 3.2, 2xUSB 2.0

Overview

Gigabyte B760M GAMING WIFI6 PLUS GEN5 Intel LGA 1700 m-ATX Motherboard, 2xDDR5 ~128GB, 1xPCI-E x16, 1xPCI-E x1, 2xM.2, 4xSATA, 5xUSB 3.2, 2xUSB 2.0 Specification: CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors Chipset Intel® B760 Express Chipset Memory 14th and 13th Generation Intel® Core™ i9/i7 Processors: - Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 c
