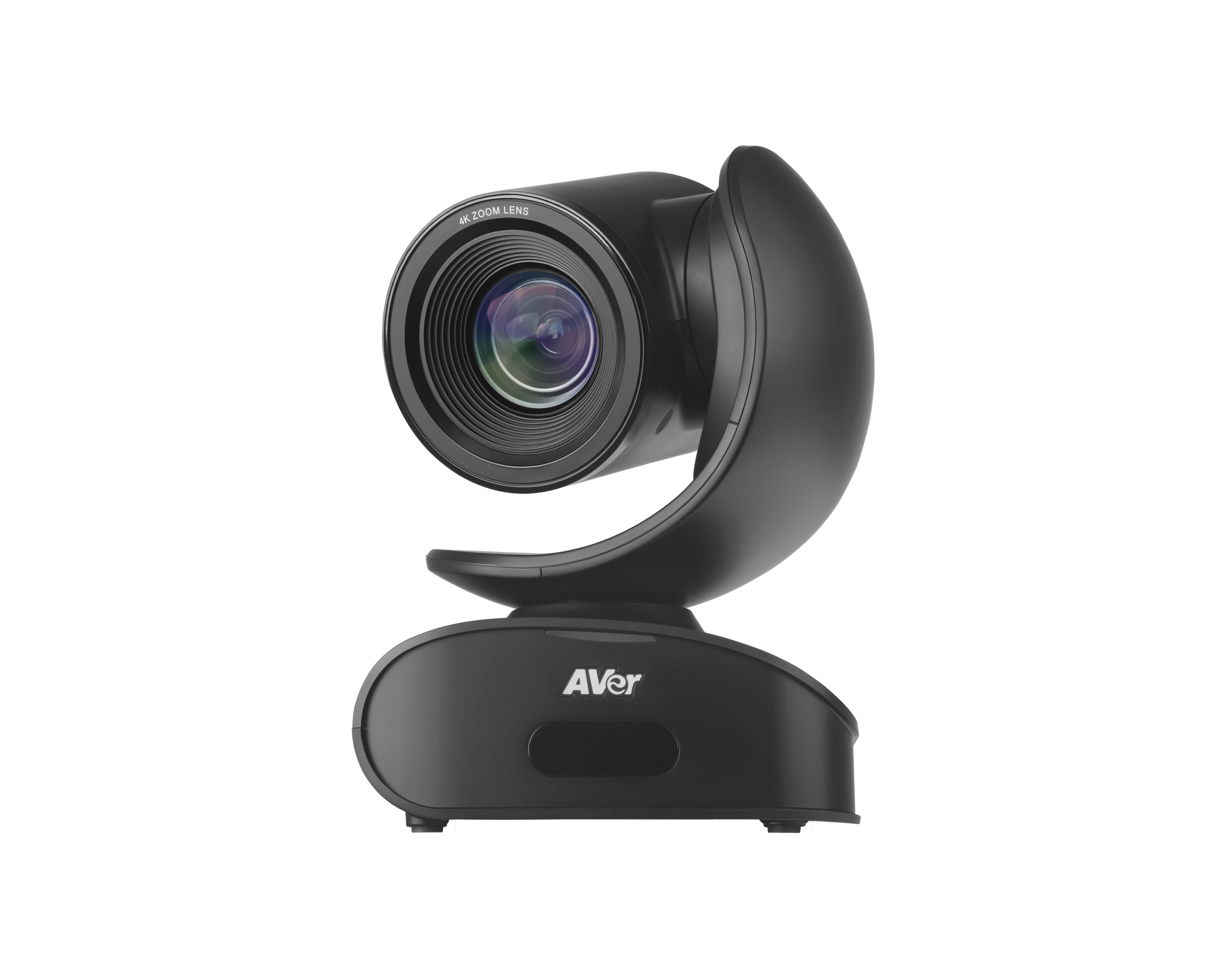

AVer CAM540 4K USB PTZ Camera

Overview

The CAM540 brings AVer's new SmartFrame auto-framing technology to 4K high definition video conferencing. With a wide field of view, the CAM540 is guaranteed to provide an incredible communication experience in your meeting room. AVer SmartFrame Gets Your Meeting Started Fast: The CAM540 delivers AVer's latest camera technology to your meeting room with AVer SmartFrame. SmartFrame maximizes the viewable field with auto-framing solution that effortlessly puts everyone in your meeting into frame fast and with no hassle. No more complex settings or time wasting controls simply click a single button and find the most comfortable distance for your meeting with the CAM540 and SmartFrame. Specifications Camera Ultra-crystal clear image support up to 4K; CMOS Sony 4K Frame rate: 4K 30fps, 1080p , 720p , 640x480, 320x240 at 60, 30, 15fps SmartFrame: Automatic FOV adjustment to fit all participants 16X Zoom (4X optical zoom + 4X digital zoom) Auto focus: minimum working distance 1 meter 86° Wide field of view Back light compensation and 2D noise reduction technology for optimizing light balance in different conditions Standard tripod screw holes Analytics API: Enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage Motorised Pan and Tilt Movement Pan: ±160° Tilt: +90° (up) -30° (down) 10 camera presets (through remote control) Quiet and smooth pan and Tilt movement Connectivity 12V power adaptor Mini DIN6 for RS232 connection USB Type C connector USB 2.0, 3.1 Gen1 UVC (USB Video Class) 1.1 Control IR remote control VISCA/pelco P/pelco D via RS232 UVC/ plug-and play Room Management (PTZApp 2) System requirement* Windows 7/10/11 Mac OS X 10.14 or higher Chromebox 3 version 94.0.4606.114 or later Hardware Spec* 2.4GHz Intel® Core 2 Duo processor 2GB RAM or more USB 3.1 Gen1 port Software Tools Room Management (PTZApp 2) - Support Windows® 7 or later, macOS® 11.6 or later Package contents Camera Remote control Power adapter USB3.1 type-C to type-A (6ft) USB3.1 type-A to type-C adapter Quick-start guide Metal mount, tripod screw Battery Compatible Applications Adobe Connect, Blue Jeans, CyberLink U Meeting®, Cisco WebEx®, Google Hangout, GoToMeeting™, Intel® Unite™, Microsoft® Lync™, Skype™,Skype for Business, V-Cube, vMix, WebRTC, Wirecast, XSplit, ZOOM

• 4K UHD PTZ Conference Camera
• FOV 86 degrees, 16X Total zoom
• Motorised Pan and Tilt Movement - Pan: +/- 160 degree Tilt: +90 degrees (up) - 30 degrees (down) with 10 camera presets (through remote control)
• Ideal for Mid to Large meeting rooms with up to 24 people / Up to 10 x 10m (33ft x 33ft)
• AVer SmartFrame Gets Your Meeting Started Fast: SmartFrame maximises the viewable field with auto-framing solution that effortlessly puts everyone in your meeting into frame fast
• 4K Ultra HD: The CAM540 supports a high-end Sony 4K CMOS that allows for 4K video to be captured at 30 frames per second, providing users with an unbelievably lifelike meeting experience
• High Detail 16X Total Zoom: The CAM540 is built with cutting edge 16X total zoom capability. Bringing an unseen level of clarity to video conferencing
• Analytics for Efficient Meeting Rooms: The CAM540 provides an analytics API so enterprises and third-party software providers can obtain people-counting data
• Connectivity: 12V power adaptor, Mini DIN6 for RS232 connection, USB Type C connector
• Package contents: Camera, Remote control, Power adapter, USB3.1 type-C to type-A (6ft), USB3.1 type-A to type-C adapter, Metal mount, tripod screw
• Compatible Applications: Zoom, Adobe Connect, Blue Jeans, CyberLink U Meeting, Cisco WebEx, Google Hangout, GoToMeeting, Intel Unite, Microsoft Lync, Skype, Skype for Business
• Camera: Ultra-crystal clear image support up to 4K. Frame rate: 4K, 1080p , 720p , 640x480, 320x240
