Adata

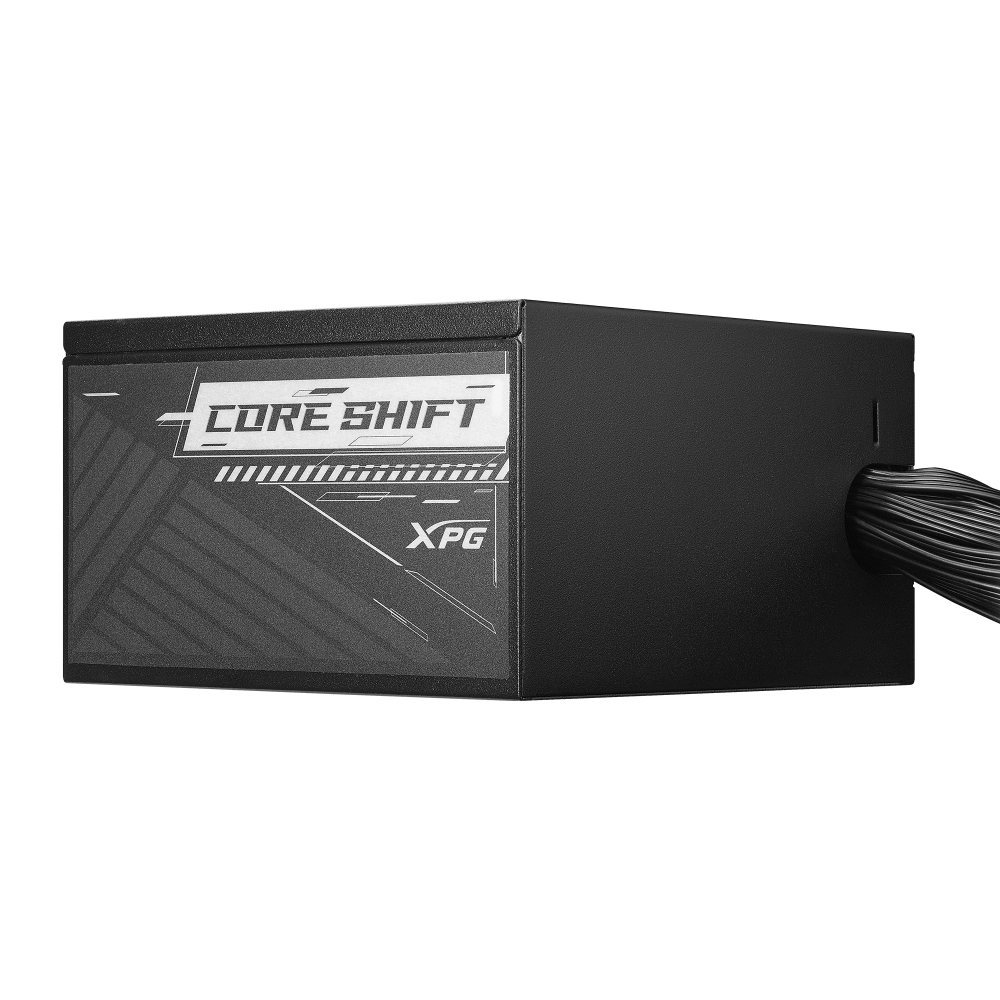

750W ADATA XPG CORE SHIFT II VE POWER SUPPLY
Part no. CORESHIFTIIVE750GD-BKBAU
$109.05inc GST
Available to order
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
Dimensions (L x W x H) 140 x 150 x 86 mm 80 PLUS Rating Gold ATX Version Intel ATX v3.1 Protections OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP PFC 0.99 Input Voltage 100–240V Input Current 10A–6A Input Frequency 50–60Hz DC Output Voltage +5V Total Output 750W: +5V/+3.3V: 20A, +12V: 62.4A, -12V: 0.4A, +5Vsb: 3A Power Excursion 750W: 1500W (up to 200% of rated power for 100µs) Operating Temperature 40°C Fan Size 120 mm Fan Bearing Sleeve Bearing Fan Speed 2200 ± 10% RPM MTBF >100,000 hours @ 25°C ATX 24 Pin Connector 1 EPS 8 Pin Connector 2 PCI-E 6+2 Pin Connector 3 Molex 4 Pin Connector 2 12V-2x6 (12+4) Connector (450W) 1 Weight 1.8 kg Warranty 5 years
