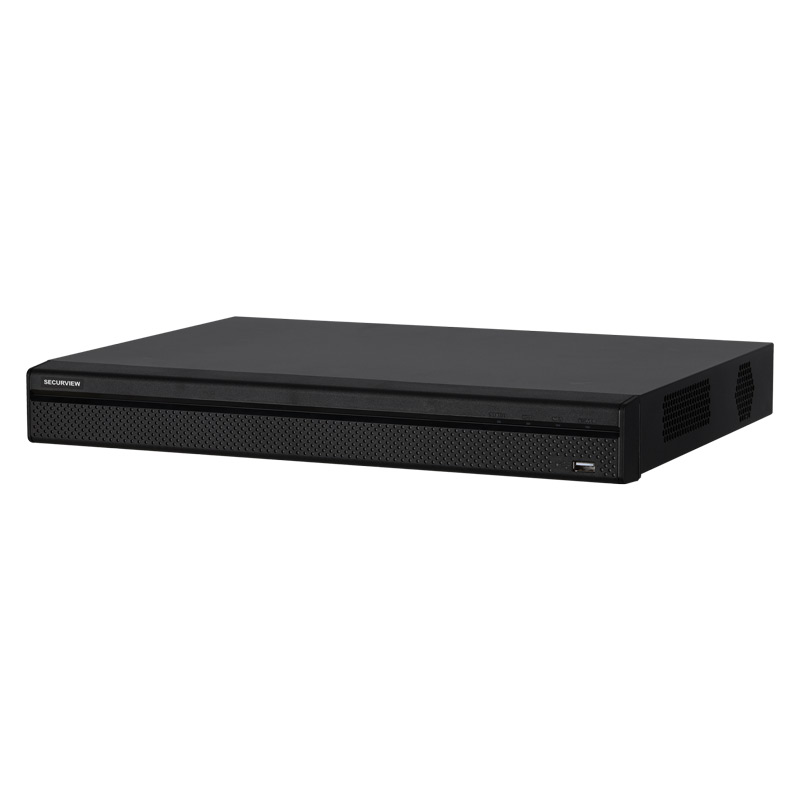

Professional Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder

Overview

Transform your existing low-resolution surveillance system into an Ultra HD AI system with the Securview Professional Series. Upgrade coaxial based systems to HDCVI (high definition composite video interface) and gain access to AI functionality*, 4K recording at 7fps and cross compatibility for IP, analogue and other coax technologies. These DVRs are fantastic for existing coax cable system upgrades and for upgrades on a budget that wish to use existing cameras. Product features: • Records 16 channels up to 8.0MP (3840 x 2160) at 7fps • Supports H.265+ high efficient video compression • 2 x SATA ports up to 16TB, max. 32TB HDD capacity • Support for HDCVI, Analogue and IP video inputs • Add 16 additional IP channels up to 8.0MP to allow a total of 32 cameras* • Identify people with up to 2 channels of face recognition (BNC inputs only) • AI person and vehicle detection using smart motion detection or intrusion/tripwire rules • Receive face recognition & people/vehicle detection alerts to your device • Alarm system integration with 16 channel input and 3 relay outputs • Configure iOS/Android remote view in seconds via QR code • HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output • Backup via external USB device or local network *Addition of IP Cameras beyond 16 channels disables the DVR's AI / IVS functions. **IP cameras with built-in AI cannot use AI functions on HDCVI DVRs. *DVRs include 4 year warranty; HDDs include 3 year warranty

• AI Functions: Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)
• AI Search (Face Recognition): Up to 8 target face images at the same time
• AI Search (Perimeter Protection): Search by target classification (Human, Vehicle)
• AI Search (SMD+): Search by target classification (Human, Vehicle)
• Alarm Input / Output: 16 channel input / 3 relay output
• Audio In/Out: 4 channel input / 1 channel output (RCA)
• Auxiliary Inputs: 1 x RS485 port (for PTZ)
• Backup Modes: USB Device / Network
• Bit Rate: 32Kbps ~ 6144Kbps Per Channel
• Coax Input Support: 16 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue)
• Database Application: Each database can be applied to video channels independently
• Database Management: Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
