Watchguard
Roller Shutter Reed Switch
Part no. DRSR · Warranty 12 months
$20.60inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview

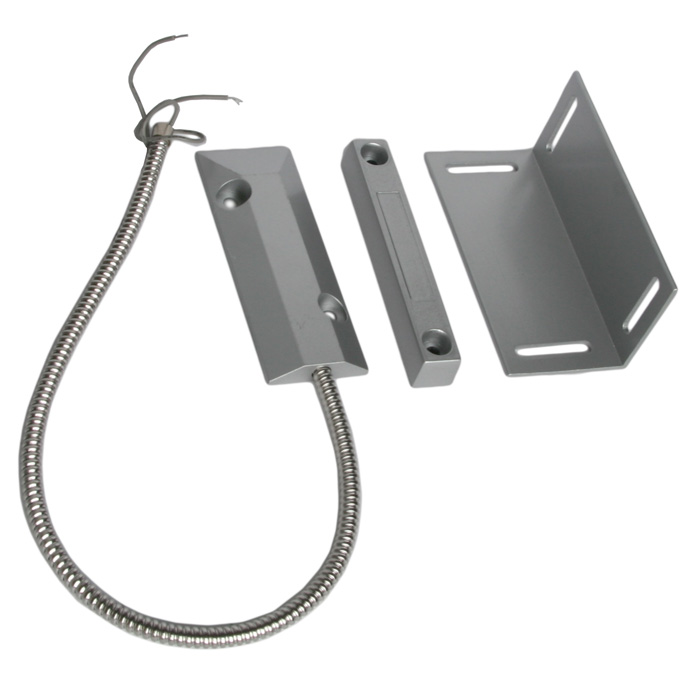

Heavy duty cast housing roller shutter door reed switch with termination contacts inside secure stainless steel conduit. Product features: • Heavy duty zinc alloy construction • Normally open (N.O) reed switch when at rest • Closed loop when near magnet; open loop when away from magnet • 50mm operating distance • 100VDC 500mA • Stainless steel termination conduit • 106mm x 38mm x 10mm
- Contact Rating - Maximum: 100VDC 500mA
- Dimensions: 106mm x 38mm x 10mm
- Magnet Away: Open Circuit
- Magnet Near: Closed Circuit
- Magnet-Sensor Gap - Maximum: 50mm
- Material: Zinc Alloy
- Mount: Surface
- Switch Type: Normally Open (N.O)
- Type: Reed Switch
