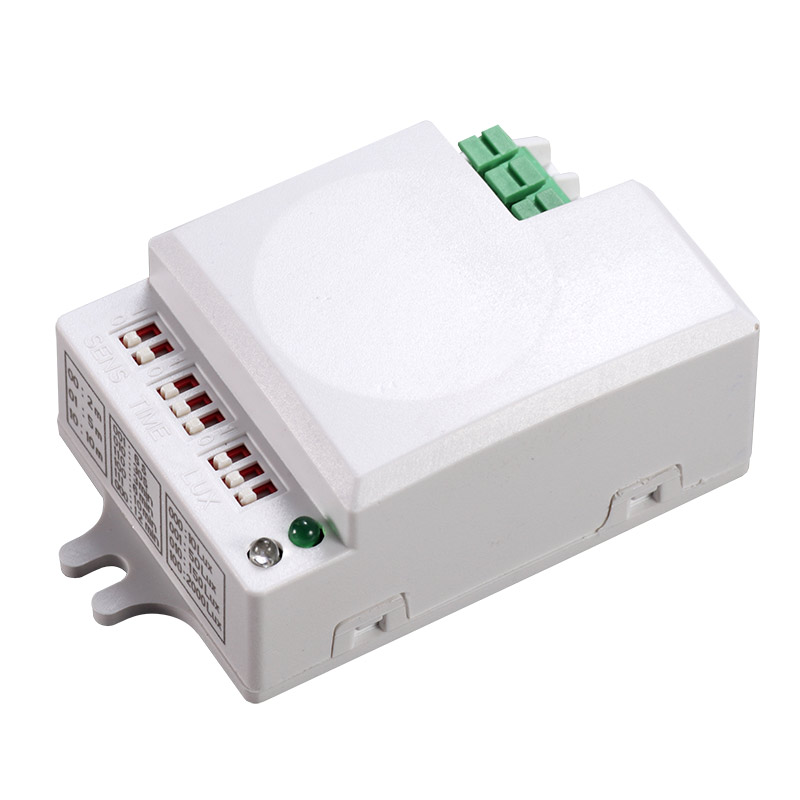

Microwave Sensor Motion Activated Switch

Overview

The ENSA-MS1 is a intelligent sensor switch, designed for in-line installation with existing lighting. Its compact design and microwave sensor allow it to be installed directly inside of lighting for discreet energy saving applications. Add three step energy saving to any light with sensor switches: 1) Daylight sensor: Activates motion sensor when lux levels fall below limit 2) Motion sensor: Detects movement, turns light on only when necessary 3) On-timer: Light-on duration is set only as long as is required Product features: • Automatically activate and deactivate lighting for energy efficiency • Adjustable sensors: Daylight (5~2000lx) / Motion (2~8m) / On-timer (5s~10min) • 360° circle / Ø2 ~ 8m microwave detection • Designed for in-line installation with lighting, for indoor use only • 3 year warranty

• Daylight Sensing: 3 ~ 2000 Lux
• Daylight Sensor: Yes
• Dimensions: 40 x 60 x 25mm
• Ingress Protection: N/A (Indoor use only)
• Input Voltage: 220 ~ 240VAC 50Hz
• Max. Rated Load (Resistive/Inductive): 500W / 200W
• Motion Detection Adjustment: 100% / 60% / 25%
• Motion Detection Area: 360° circle (Ø2 ~ 8m adjustable)
• Motion Detection Speed: 0.6 ~ 1.5m/s
• Motion Sensor Type: Microwave
• Mounting Type: In-line
• On-timer Delay: 5s / 30s / 90s / 3min / 5min / 10min
