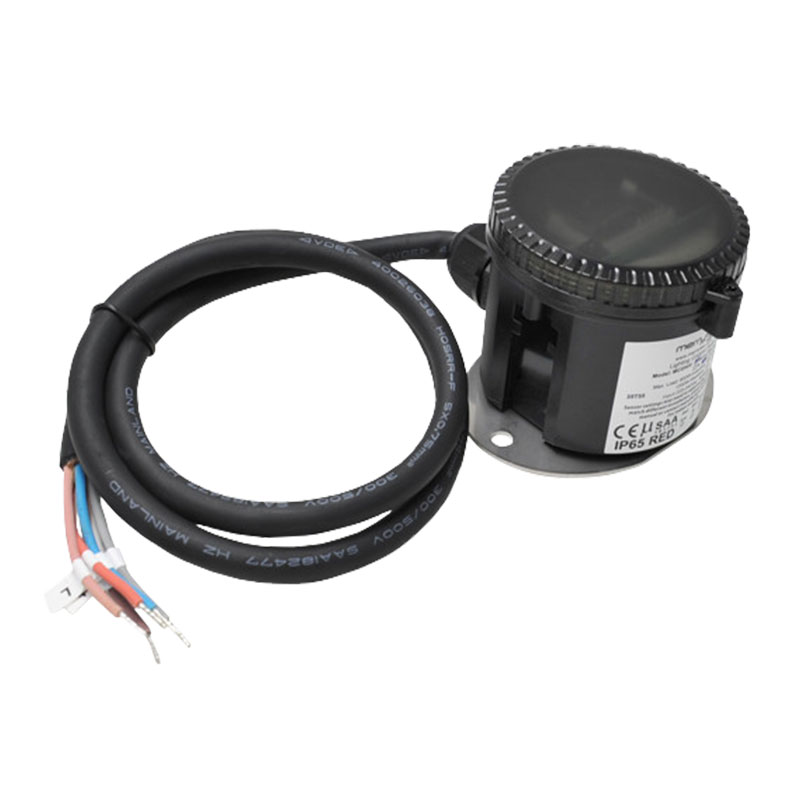

High Bay Intelligent Motion Activated Switch

Overview

The ENSA-MS8 is an intelligent sensor switch, designed for high ceiling environments. It features ambient light sensing, microwave motion detection, dimming interface and configurable on-time delay, so you may tailor light usage and energy consumption to your exact specifications. Add three step energy saving to any light with sensor switches: 1) Daylight sensor: Activates motion sensor when lux levels fall below limit 2) Motion sensor: Detects movement, turns light on only when necessary 3) On-timer: Light-on duration is set only as long as is required Product features: • Automatically activate and deactivate lighting for energy efficiency • Suitable for high bay LED lights • Adjustable sensors: Dimming (10~50%) / Motion sensitivity (25~100%) / On-timer (5s~30min) • 360° (ceiling) / 150° (wall) (15m height) microwave detection • Purpose built for high factory ceilings, IP65 rated for outdoor use * Requires the ENSA-MSRC1 remote control to adjust sensor parameters

• 1 ~ 10V Step Dimming: < 50mA (Non-constant source) / 10%(1.4-1.6V), 20%(1.9-2.1V) / 30%(2.9-3.1V), 50% (4.9-5.1V)
• Daylight Sensing: 5lux / 15lux / 30lux / 50lux / 100lux / 150lux / Disable (Ambient light diffusion)
• Daylight Sensor: Yes
• Dimensions: Ø73 x 62mm
• Ingress Protection: IP65
• Input Voltage: 220 ~ 240VAC 50Hz
• Load Capacity: 120VAC: 4A; 220-277VAC: 3A
• Max. Rated Load (Resistive/Inductive): 1200W / 800W
• Motion Detection Adjustment: 100% / 75% / 50% / 25%
• Motion Detection Area: 360° (Ceiling) / 150° (Wall) 15m
• Motion Detection Speed: 0.3 ~ 1m/s
• Motion Sensor Type: Microwave
