TP-LINK
Part no. ER701-5G-Outdoor · Warranty 36 months
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.

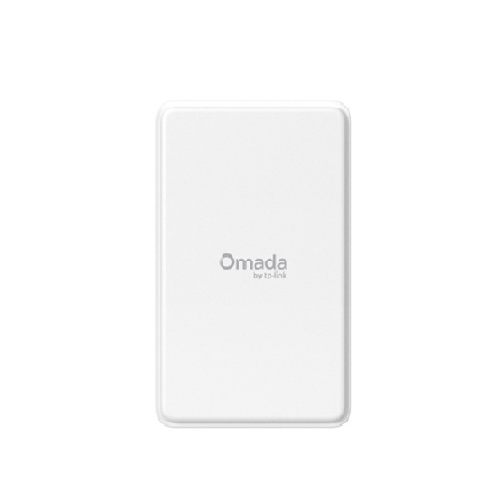

TP-Link ER701-5G Outdoor Omada 5G Gateway with Dual Nano SIM Support, PoE Power Input, 2.5G Ethernet Port, Enterprise Routing, VLAN, Firewall, and Omada Cloud Management Device •Outdoor 5G Gateway / Router Dual •Nano SI •PoE powered • Omada-managed Cellular – 5G NR • Bands: n1 / n3 / n5 / n7 / n8 / n20 / n26 / n28 / n38 / n40 / n41 / n75 / n76 / n77 / n78 • Frequencies: 700 / 800 / 850 / 900 / 1500 / 1800 / 2100 / 2300 / 2500 / 2600 / 3500 / 3700 MHz • SA: 7.01 Gbps ↓ / 1.25 Gbps ↑ •NSA: 4.5 Gbps ↓ / 730 Mbps ↑ Cellular – 4G LTE • FDD: B1 / B3 / B5 / B7 / B8 / B20 / B26 / B28 / B32 •TDD: B38 / B40 / B41 / B42 / B43 • Speed: 1.6 Gbps ↓ / 211 Mbps ↑ Cellular – 3G • WCDMA: B1 / B5 / B8 SIM •1 × Dual Nano SIM slot • Failover supported Ethernet •1 × 2.5G RJ45 •10 / 100 / 1000 / 2500 Mbps •PoE: •802.3at (42–57 V, 0.6 A) • Passive 48 V Wireless (Local) • 2.4 GHz only • 802.11 b / g / n • 150 Mbps max • WPA / WPA2-Personal • 1 SSID •TX power control • Auto channel selection Routing / Switching •Static routing • OSPF (Standalone) • Bridge VLAN • 802.1Q VLAN • Multi-Net interfaces NAT / Firewall • Multi-Net NAT • Virtual server • Port triggering • DMZ •ALG: FTP / SIP / IPSec / PPTP / H.323 • UPnP •Stateful ACL Storage / Memory •4 GB eMMC •2 GB LPDDR4x Power Max consumption: •15.3 W Physical Dimensions: •183 × 110 × 36 mm • Wall / pole / window mount • Waterproof kit included Warranty Period: 3-Year
