Gigabyte
Part no. GP-GME1000GM PG5/PSU · Warranty 36 months
RRP $299.00 · You save $55.35
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.

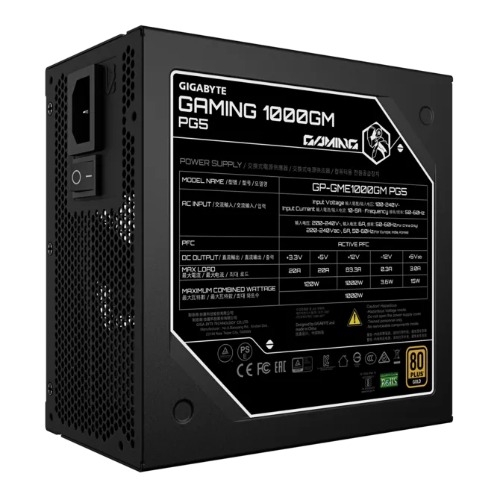

GIGABYTE GAMING 1000GM PG5 1000W 80+ Gold ATX 3.1 PSU PCIe 5.0 16pin full modular 135mm fan OVP OPP SCP UVP OCP OTP 8SATA 4PCIe 2EPS 100,00h MTBF Model GP-GME1000GM PG5 Type Intel Form Factor ATX 12V v3.1 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6A Input Frequency 60-50 Hz Output Capacity 1000W Dimensions 150 x 150 x 86mm Fan Type 135mm FDB Fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protections OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP Power Good Signal 100-150ms Hold Up Time >17ms (80% load) Cable Type Embossed, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
