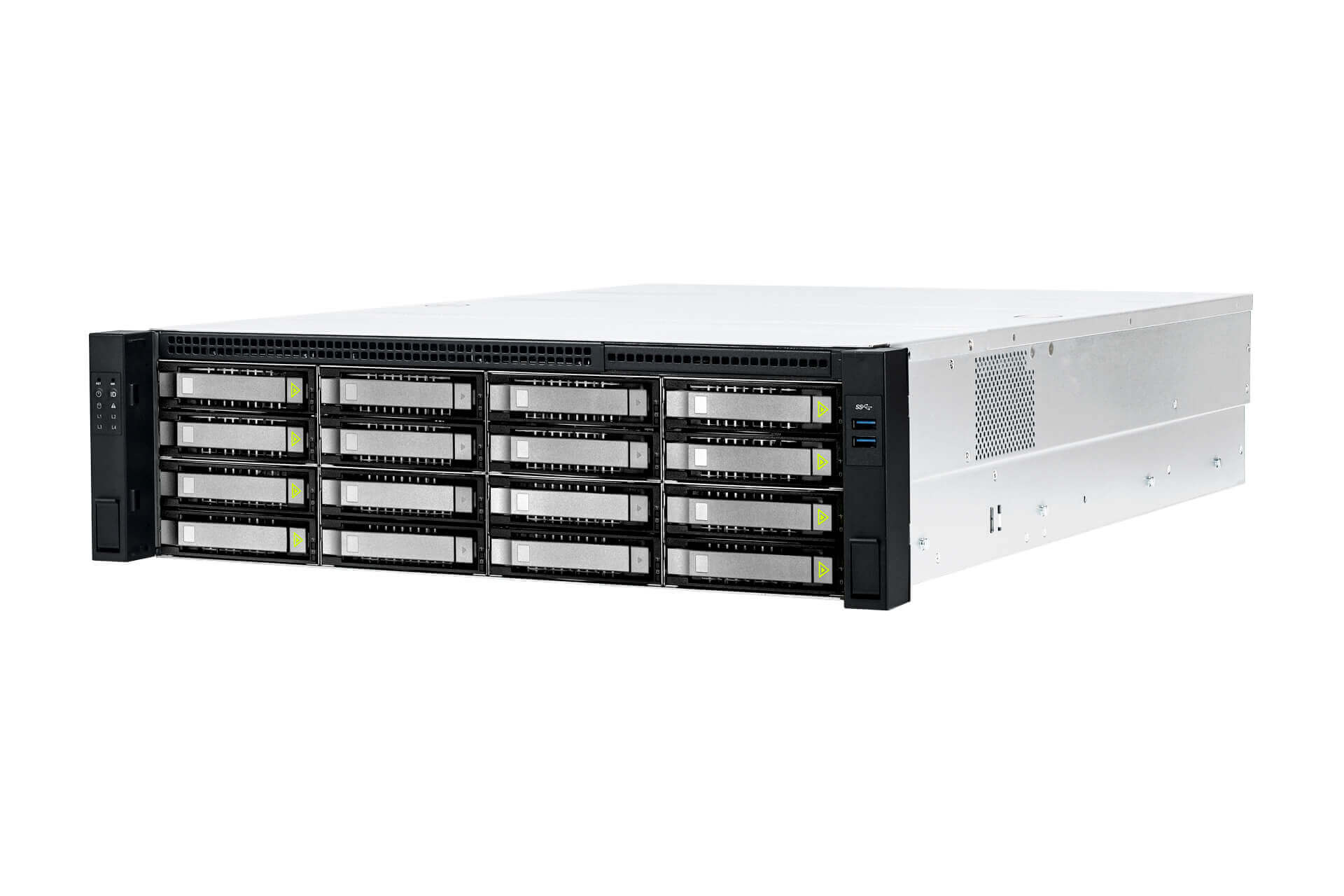

Inwin
Part no. IW-RS316-02M
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
We need to check the weight and size of this item and confirm delivery options manually.
Specification Industry Standard Compatible with EIA-RS310D standard 19" cabinets M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") Drive Bay • External 2.5"/3.5" hot-swap trays x 16 (optional U.2 NVMe SSD trays x 8) • Internal 2.5" SSDs x 3 (one for option) and slim ODD x 1 • Rear 2.5" screwless hot-swap SSD trays x 2 (supports SAS 12Gbps) Power Supply • Form factor: 80 Plus Platinum • Watt: 800W Redundant Indicators Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED Front Control Panel Power on/off, reset, NMI, ID SW, USB3.0 x 2 Backplane Type-1 • Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8 • HDD: SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8 Backplane Type-2 • Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8 • HDD: SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8 12Gbps Expander Module Supports broadcom SAS 35 x 36R expander Cooling Fans 80 x 38mm PWM hot-swap fans x 4, 12000RPM Expansion Slot Full-height PCIe slots x 7 Material • Material: SGCC • Thickness: 1.2mm Rail Kit Supports 28" tool-less & ball-bearing slide rails Product Dimensions (DxWxH; Chassis Only) 660 x 448 x 132.1mm (26" x 17.6" x 5.2") Package Dimensions (DxWxH) 845 x 595 x 267mm Weight (Chassis Only) • Net weight: 17.63kg • Gross weight: 21.03kg Cubic Feet 4.74 Container Information Single packing with pallets: • 20': 140pcs • 40': 322pcs • 40'HQ: 368pcs Backplane Specifications Backplane Type-1 SAS3 & PCIe Gen4 hybrid backplane Data Transfer Rate SAS3 12Gb/s PCle Gen4 16GT/s Dimension (W x H) 405mm x 106mm Backplane Type Active with expander onboard Host Interface Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8 HDD Interface SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8 Backplane Type-2 SAS3 & PCIe Gen4 hybrid backplane Data Transfer Rate SAS3 12Gb/s PCle Gen4 16GT/s Dimension (W x H) 405mm x 106mm Backplane Type Active with expander onboard Host Interface Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8 HDD Interface SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8 * InWin NVMe backplane supports PCIe Gen4 data transfer speed, the actual speed will be determined by MB and HDD specifications. * All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications.
