PANORAMA
Part no. LGAM-7-27-24-58 · Warranty 12 months
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.

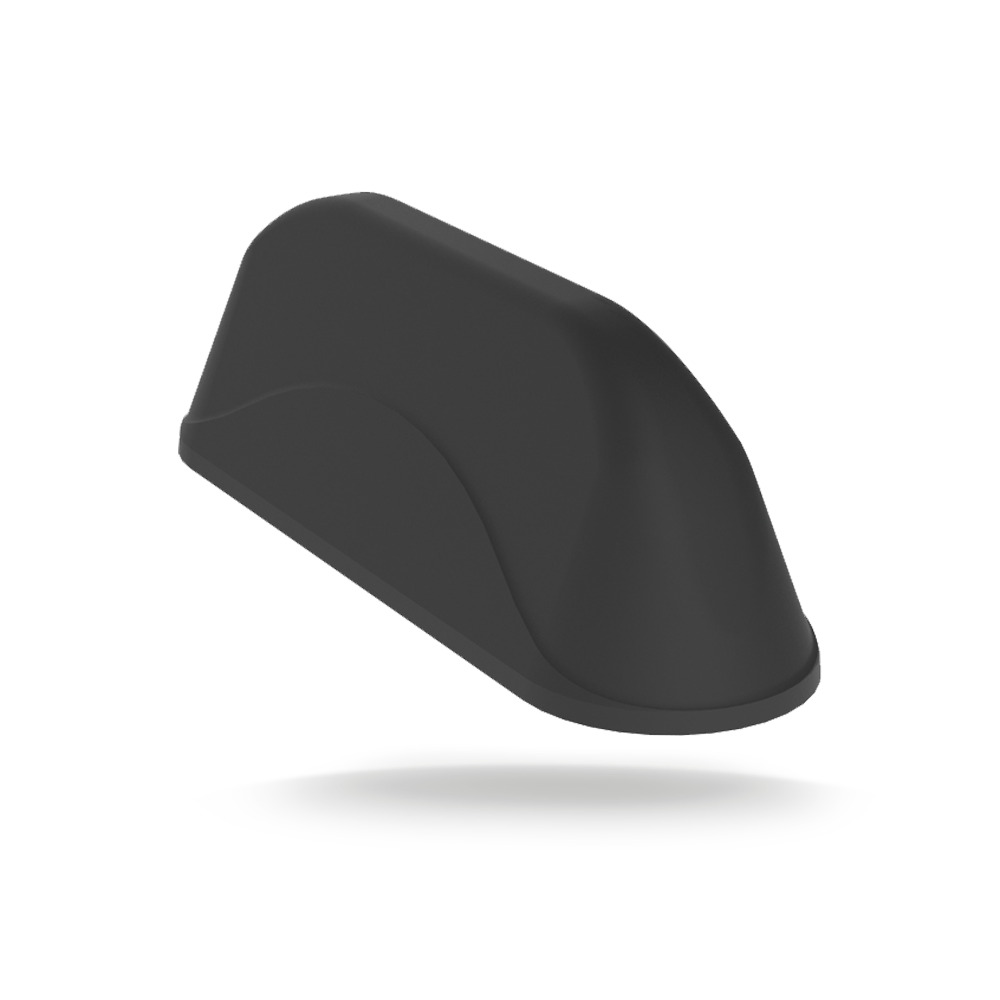

PANORAMA 2x2 Multifunction MiMo Antenna 4G/5G LTE 698-3800MHz 2x2 MiMo WiFi 2.4/5.0GHz Low profile fin design This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications. The L[G]AM consists of a 2×2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, a 2×2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface. Cradlepoint Approved for S700, IBR600 Series Compact low profile MiMo LTE antenna 1x or 2×2 MiMo dual-band WiFi Optional GNSS version available High performance in a distinctive design Covers all 2G/3G/4G/5G LTE cellular band Dual-band 2.4/5GHz WiFi Weatherproof IP66 Certified design Single hole mount with a small footprint Static M2M & loT devices Remote monitoring Smart metering Vending machines ELECTRICAL DATA Pattern Omnidirectional Max Input Power(W) 25 Frequency Range | Gain 698 – 960MHz | 2dBi; 1710 – 3800MHz | 5dBi Cellular LTE Elements 2 x 2 MIMO WIFI Elements 2 x 2 MIMO; No UHF Elements No GPS DATA GPS Frequency Range 1562-1612MHz LNA GAIN (dB) 26 Number of GPS Elements 1 Module; No MECHANICAL DATA Colour Black Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F) CABLE DATA Cable Length – LTE 3 (m) | 9.84 (ft) Cable length – GPS 3 (m) | 9.84 (ft) Cable Length – WIFI 3 (m) | 9.84 (ft) Cable Type (LTE) RG174 Cable Type (GPS) RG174 Cable Type (WIFI) RG174 TERMINATION DATA Connector (WIFI) SMA Rev Pol; FAKRA I Connector (GPS) SMA (m); FAKRA C Connector (LTE) SMA (m); FAKRA D MOUNTING DATA Mounting Type Fixed Panel Mounting Methods Panel APPROVALS DATA IP Rating IP66 TECHNOLOGY DATA Technology GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G; 2G/3
