Watchguard

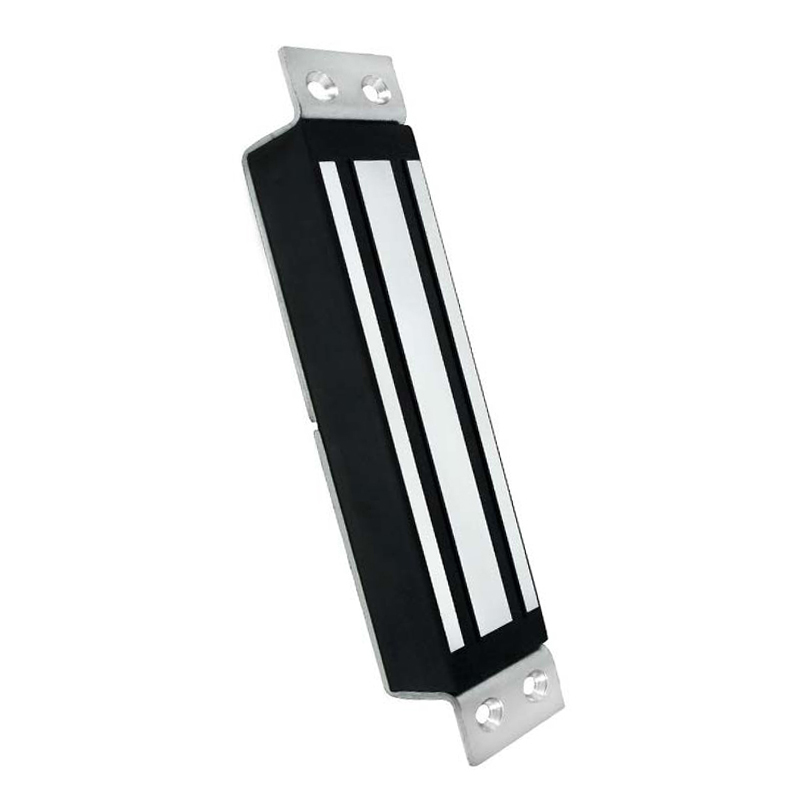

Mortise Mount Magnetic Lock
Part no. MAGLOC100M · Warranty 12 months
$100.60inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
The Watchguard™ MAGLOC Series comprises affordable access solutions, with a wide range of electromagnetic locks and accessories to safely and securely control access in your home or business. The MAGLOC100M is a mortise mounted electromagnetic door lock, designed for indoor use. This model includes the electromagnetic lock, armature plate and mounting component kit. Product features: • Mortise mount design • 270kg approximate holding force • Anodised aluminium face plate with zinc finish • 12V/24VDC selectable power input • Overvoltage/voltage spike protection
- Armature Dimensions: 185 x 38 x 12.5mm
- Construction: Anodised Aluminium with Zinc Finish
- Current Draw: 500mA@12V / 250mA@24V
- Door Status Sensor: No
- Holding Force: 270kg
- Lock Configuration: Fail Safe
- Lock Dimensions: 228 x 38 x 27mm
- Lock Status Sensor: No
- Power Input: 12VDC / 24VDC (selectable)
- Timer: No
- Type: Mortise Mount
- Weather Rating: Indoor Only
