Teltonika

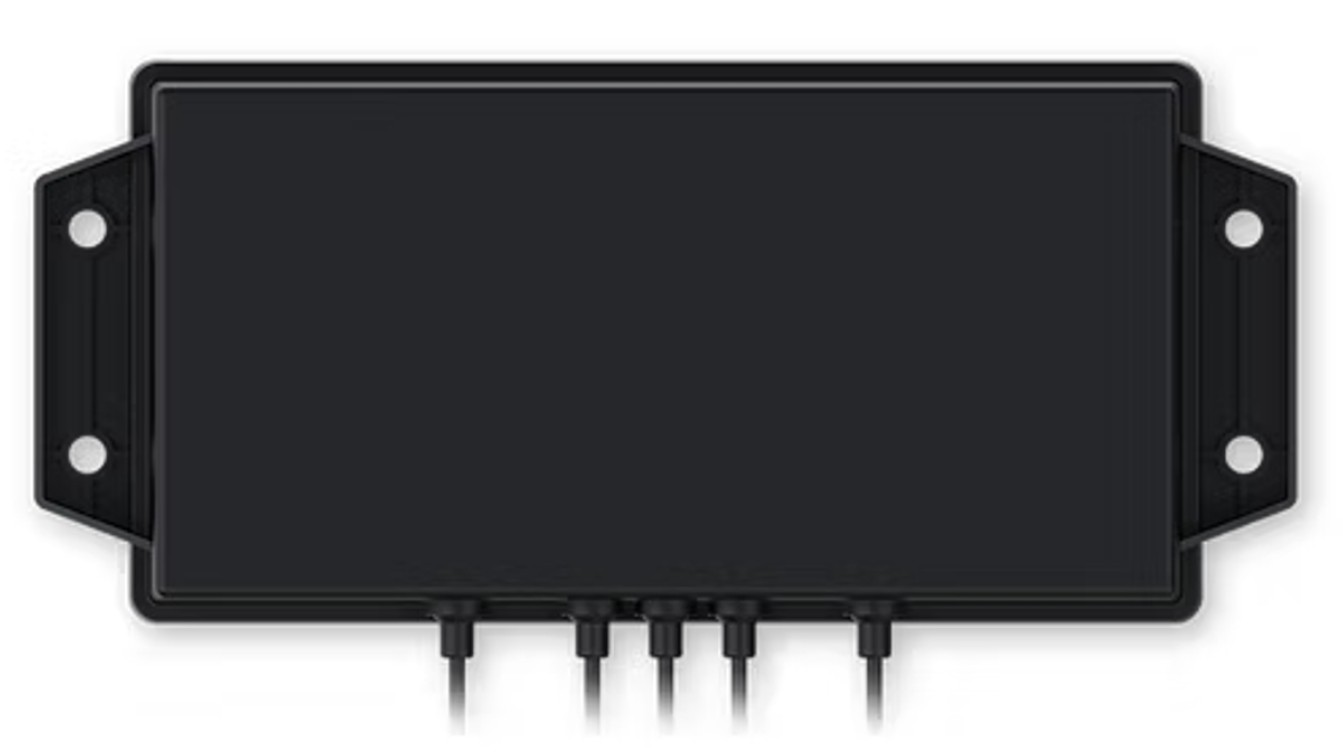

Teltonika 5G COMBO MOBILE/GNSS SMA ANTENNA
Part no. PR1KCN40 · Warranty 24 months
$220.00inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
Technical Data Mounting type M6 Screw or Adhesive Enclosure material PC/PC+ABS UV resistant ✓ Cable length 3000 mm Weight 450 g Operating temperature -40 °C ~ +80 °C Operating humidity ≤ 90 % Ingress Protection Rating IP67 RoHS compliant ✓ 5G MOBILE MIMO ANTENNA Frequency range 600 ~ 960, 1427 ~ 2700, 3300 ~ 4200, 4400 ~ 5000 MHz Polarisation Linear Radiation pattern type Omni-directional Gain ≤ 4 dBi V.S.W.R ≤ 2.5 Impedance 50 Ω Connector type and count 4 x SMA Male Cable type 4 x LMR100 GNSS ANTENNA Frequency range 1559 ~ 1610, 1164 ~ 1189 MHz Polarisation RHCP Radiation pattern type Directional Gain ≤ 2 dBi LNA Gain 17 ± 2 dB LNA noise figure ≤ 2 dB V.S.W.R ≤ 2 Impedance 50 Ω Supply voltage 3 ~ 5 VDC Current consumption 15 mA Connector type and count 1 x SMA Male Cable type 1 x LMR100
