Watchguard

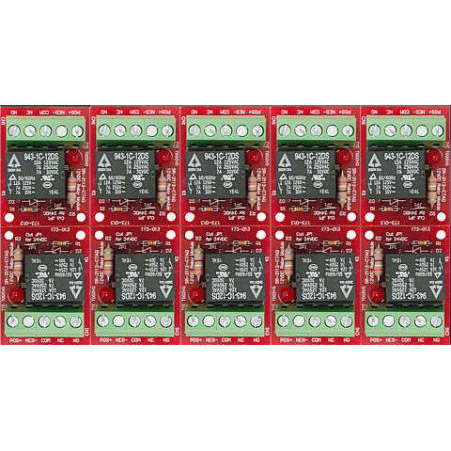

12/24VDC 10-Pack Relay Module (One 7A SPDT Relay)
Part no. RLM7A-SD-10 · Warranty 12 months
$105.75inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
Expand your wiring and installation options with the useful Watchguard™ range of relay modules. Featuring heavy duty, low-current, high sensitivity and break-away modules, you’ll always have the perfect relay for the job. Series features: • Relay modules for any application where switches are required • Pre-wired to easy-to-install modules • Screw terminals allow easy installation without soldering or other time-consuming connections • Wide-selection available: Choose single or dual relays, low-current or heavy-duty operation, and high-sensitivity or normal-sensitivity Product features: • 12/24VDC Trigger Voltage • One 7A Form C SPDT Relay per module • Includes 10 relay modules on a single board, with an easy break-away feature for use as individual modules. Works great with alarm panels.
- Current Draw: 35mA@12VDC / 40mA@24VDC
- Dimensions: 40 x 30 x 20 mm (per module)
- No. of Relays: 1
- Operating Voltage: 12/24 VDC
- Relay Ratings: 7A
- Relay Type: SPDT
- Trigger Voltage: 12/24 VDC
- Voltage Selection: Jumper
- Weight: 20g (per module)
