Watchguard

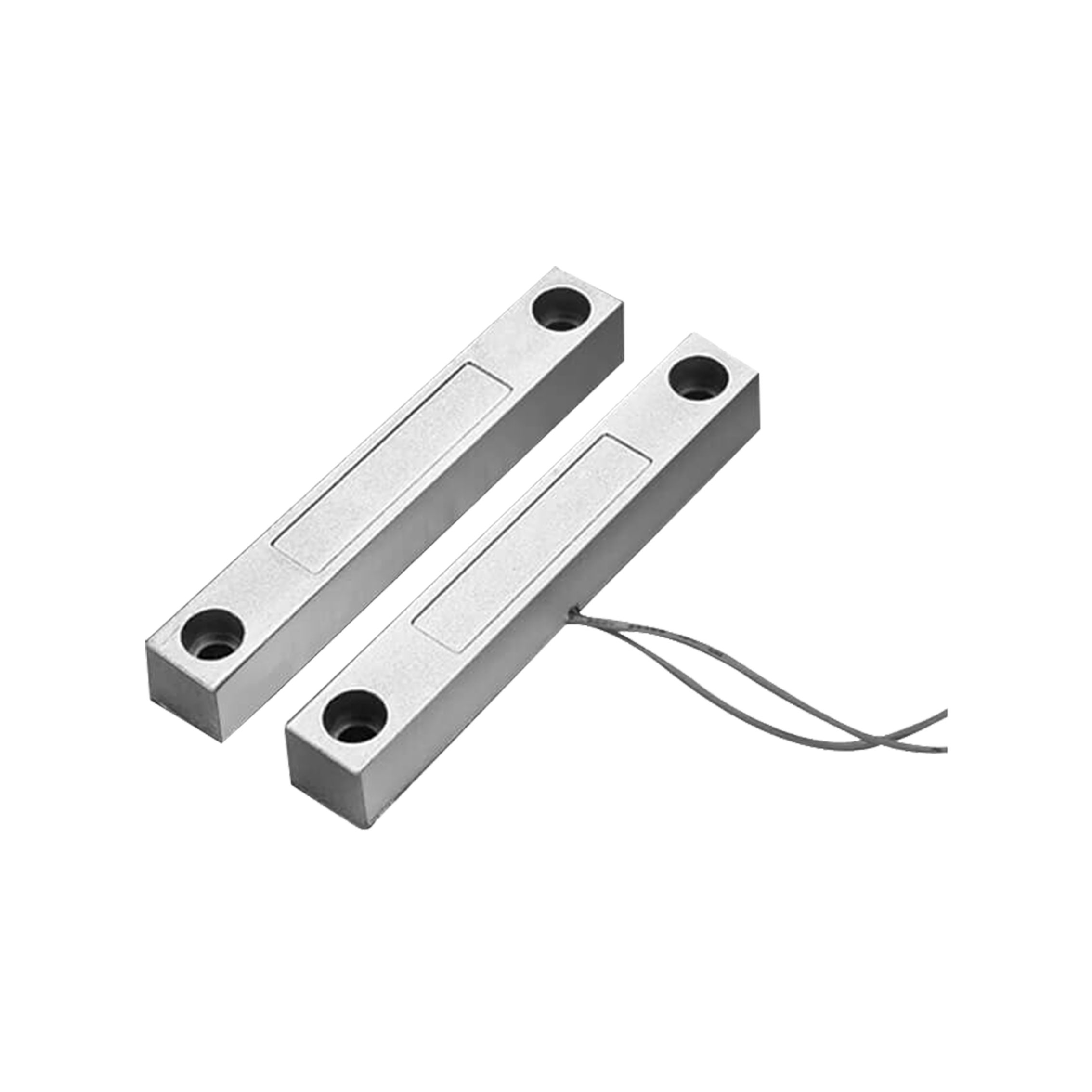

Heavy Duty Hard Wired Reed Switch (Silver)
Part no. RSW-M1 · Warranty 12 months
$14.85inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
The RSW-M1 is a heavy duty hard wired reed switch, designed for window and door applications. Product features: • Heavy duty magnetic contact switch • Large magnet sensor gap, up to 50mm • Normally open (N.O) reed switch output • Closed loop when near magnet; open loop when away from magnet • 10W maximum contact rating (up to 100V, 0.5A) • 250mm sensor leads (22 AWG / Ø0.64mm) • Robust casing of zinc alloy construction • Surface Mounted, screws included • Dimensions 106 x 16 x 16mm Available in silver, white or brown casing.
- Contact Rating - Maximum: 10W 100VDC 0.5A
- Dimensions: 160mm x 16mm x 16mm
- Magnet Away: Open Circuit
- Magnet Near: Closed Circuit
- Magnet-Sensor Gap - Maximum: 50mm
- Material: Zinc Alloy
- Mount: Surface
- Switch Type: Normally Open (N.O)
- Type: Reed Switch
