APC
Part no. SBP20KRMI4U · Warranty 24 months
RRP $5,307.50 · You save $997.35
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.

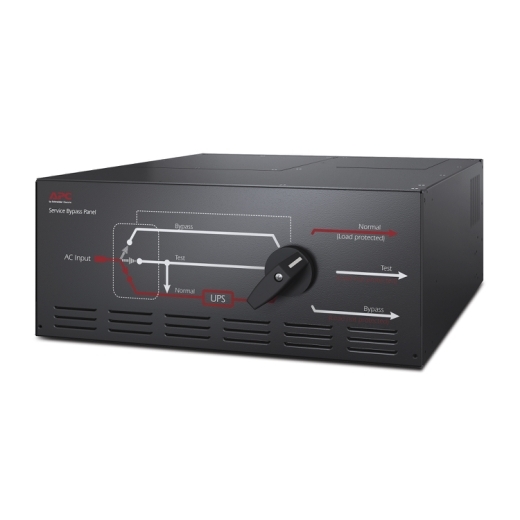

APC Service Bypass Panel 230V MBB 125A HW input IEC-320 output (8) C19 Main Input Voltage 220 V, 230 V, 240 V, 380 V 3 phases, 400 V 3 phases, 415 V 3 phases Main Output Voltage 230 V Other Output Voltage 220 V, 240 V Number of rack unit 4U Number of cables 1 Number of power socket outlets 8 IEC 60320 C19 Provided equipment- Installation guide, Rack mounting brackets, User manual Network frequency 50/60 Hz Number of input connectors 1 hard wire 3-wire (1P + N + E), 1 hard wire 5 wire (3P + N + E) Max line current 125 A Input current limits 125 A Load capacity 20000 VA Power factor 0…1 Max current draw 125 A Number of power socket outlets 8 IEC 60320 C19 Protection type Circuit breaker Efficiency 99 % Ambient air temperature for operation -20…50 °C Relative humidity 0…95 % Operating altitude 0...15000 ft Ambient air temperature for storage -40…65 °C Storage Relative Humidity 0…95 % Storage altitude 0.00…15240.00 m Mounting mode- Rack mounted
