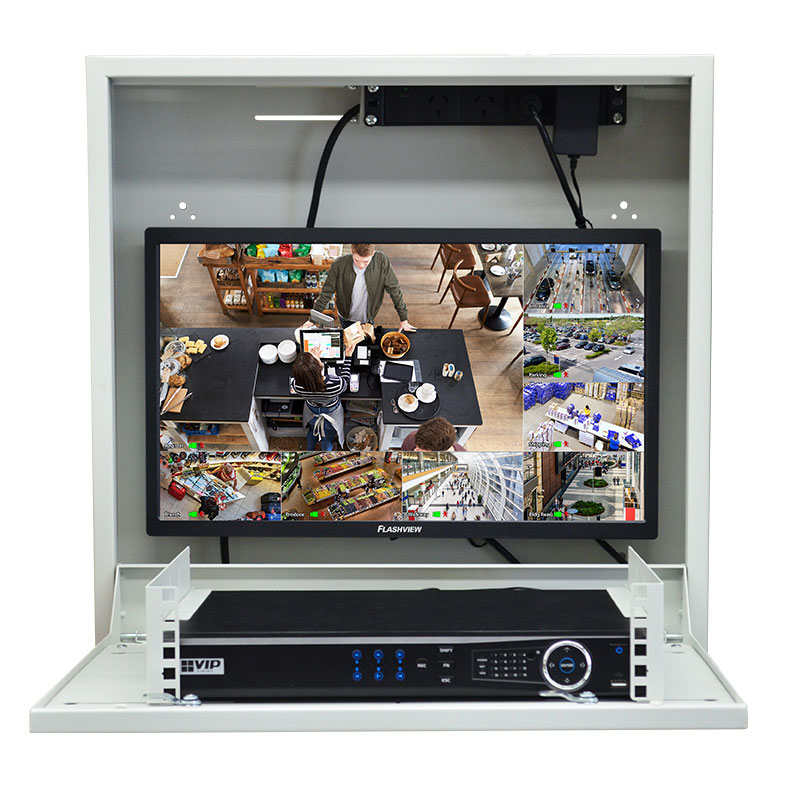

Vertical Wall Mount Security Cabinet

Overview

The SECCAB is a compact, vertical, wall-mount security cabinet that is great for delivering professional results in security installations. The SECCAB offers secure storage of CCTV surveillance, alarm & access control systems in difficult areas with limited space, such as behind refrigerators, in cupboards or wardrobes. The SECCAB vertical rackmount shelf has a capacity of up to 2U height, up to 480mm width & 465mm depth, with extra space to mount up to a 24'' LCD monitor. It can house 1 HDD, 2HDD and 4HDD bay NVRs and DVRs from VIP Vision, Watchguard, Securview. It can also accommodate a WGAP864 alarm system and professional VIP Vision access control system in a single cabinet. Product features: • Compact; only 580(W) x 635(H)x 180(D)mm (closed) • Capacity: 2RU, 240~480mm width, 465mm depth • Cable management knockouts from all cabinet sides • Superior ventilation; optional 2 x 50mm cooling fans • Fit up to 24” monitor, with 50/75/100 VESA mounts • Integrated 4 x outlet powerboard & 2 x cabinet locks • 30kg cabinet load bearing capacity (10kg vertical shelf) • 440mm width between mount points to fit wall studs • SPCC steel construction and white powder coating • USB Fans included * Ensure monitor has vertical / downwards-facing input ports & power connectors * Included standoffs and screws for attachment of alarm panels and other security systems to the SECCAB * 4 x nuts, washers & bolts included for monitor mounting *NOTE: We are recommending only using monitors listed below under Suggested Products; other monitors may not fit.

• Cabinet Depth: 465mm
• Cabinet Lock: 2 x locks on front door
• Cable Management: 2 per side, 8 total (40 x 50mm each)
• Dimensions (W x H x D): Closed: 580 x 635 x 180mm / Open: 580 x 635 x 712mm
• Fixed Shelves: No
• Load Capacity: Wall Mount: 30kg / Hinged Shelf: 10kg
• Materials: SPCC quality cold rolled steel, powder coated
• Max. Capacity (D): 465mm
• Max. Capacity (H): 2RU (~90mm)
• Max. Capacity (W): Adjustable 240 ~ 480mm rackmount slides
• Max. Monitor Size: 24” (16:9 widescreen)
• Mounting Options: Wall Mount
