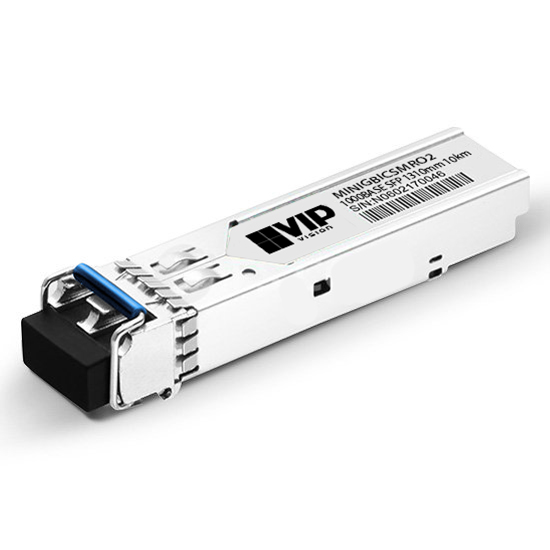

Mini GBIC / SFP Single-mode Fibre Adapter (SMF)
Part no. SFPSM1 · Warranty 12 months
$58.05inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
The SFPSM1 is a compact, hot-pluggable SFP module for linking high speed optical fibre infrastructure to a network. Easily configure and upgrade networks for high-speed networking over optical fibre, with a bit rate of up to 1.25Gbps. Product features: • Mini GBIC / SFP optical fibre adapter • Transfer data over optical fibre at up to 1.25Gbps • SFP (Small Form-factor Pluggable) • Compatible with SMF (single mode fibre) • 1310nm VCSEL laser transmitter • Hot-pluggable, allowing for installation and removal while the system is running • Built-in digital diagnostic functions, including optical power monitoring Installed in the 1000 Base-X (Combo port) SFP ports of VIP Vision PoE switches.
- Cable Type: Single-mode Fibre
- DOM Support: Yes
- Form Type: SFP (Small Form-factor Pluggable)
- Interface: LC duplex
- Max Bit Rate: 1.25Gb/s
- Max Cable Distance: 10km
- Operating Environment: -40 to 85°C / RH95% (max)
- Power Supply: 3.3VDC / 300mA
- Protocols: SFF-8472 MSA Compliant, IEEE 802.3ah-2004, ANSI Fibre Channel
- Receiver Sensitivity: < -21dBm
- TX Power: -9.5 ~ -3dBm
- Wavelength: 1310nm
