PANORAMA
Part no. SHKG-6-60 · Warranty 12 months
RRP $424.00 · You save $26.95
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.

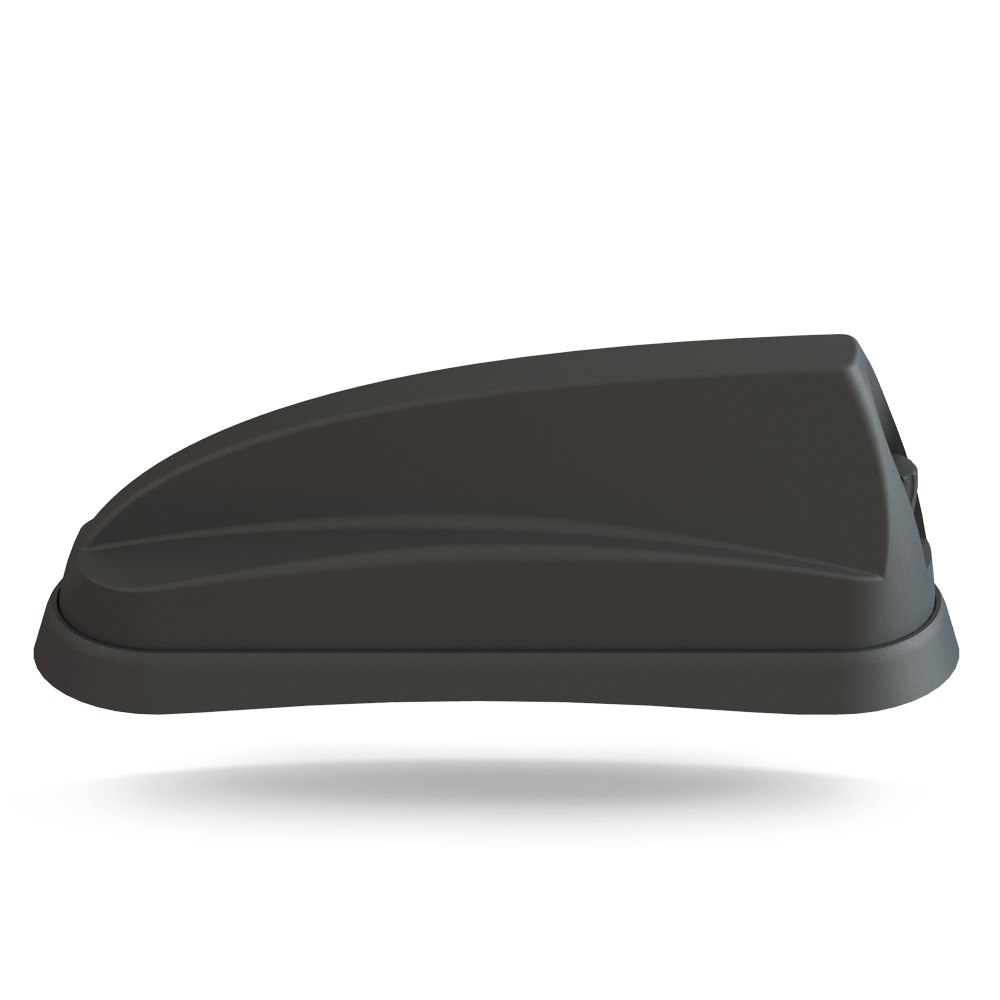

PANORAMA 2×2 MiMo Cellular Sharkee Antenna Black – 617-960 / 1710-6000MHz, 4G/5G, GPS/GNSS with advanced filtering for LTE Band 13/14 4G/5G MiMo Antenna Discrete OEM Style Sharkfin. The SHKG ‘Sharkee®’ range has become a byword for industry leading technology in discrete OEM sharkfin housing. The SHKG-6- 60 brings 5G capability to the product family. The antenna can be fitted on a metallic or non-metallic panel and still offer similar performance. The SHKG shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential. Requiring only a single hole mounting, the SHKG reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle’s resale value. Pattern Omnidirectional Max Input Power(W) 10 Frequency Range | Gain 617 – 960MHz | 5dBi; 1710 – 3800MHz | 8dBi; 4900 – 6000MHz | 9dBi Cellular LTE Elements 2 x 2 MIMO WIFI Elements No; 2 x 2 MIMO; 3 x 3 MIMO; 4 x 4 MIMO UHF Elements No GPS Frequency Range 1562-1612MHz LNA GAIN (dB) 26 Number of GPS Elements 1 Module Cable Length – LTE min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) Cable length – GPS min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) Cable Length – WIFI min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) Cable Type (LTE) FR RG174 Cable Type (GPS) FR RG174 Cable Type (WIFI) FR RG174 Quantity of Cell Cable 2 Quantity of GPS/GNSS Extension 1 Quantity of WIFI Extension max: 4 Connector (WIFI) Reverse Polarity SMA; SMA (f) Connector (GPS) SMA (m); FME (f) Connector (LTE) SMA (m) Mounting Type Fixed Panel Mounting Type Temp Magnetic Mounting Methods Magnetic; Panel IP Rating IP69K Cable Flammability EN45545-2 HL3; UN ECE R118; EN6722 Technology GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GNSS; WIFI MIMO; WIFI
