APC
Part no. SUA500PDRI-S · Warranty 24 months
RRP $1,127.50 · You save $175.85
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.

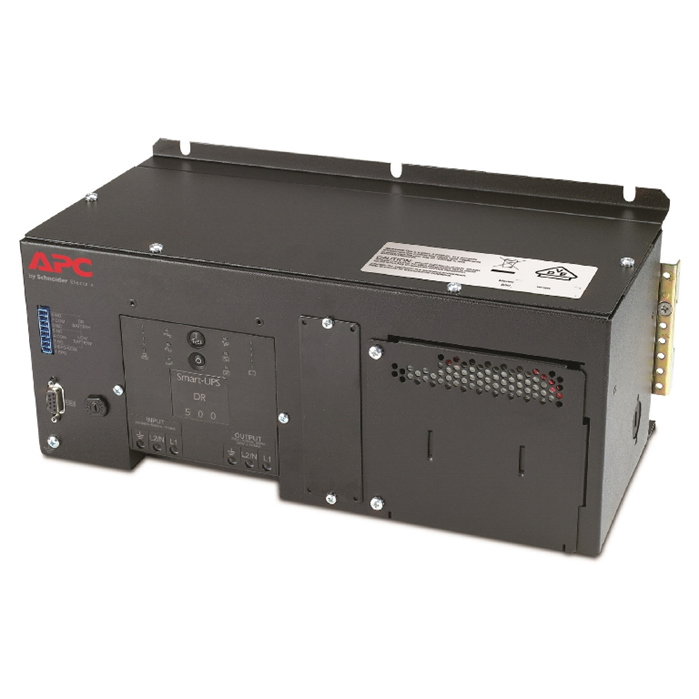

APC DIN RAIL - PANEL MOUNT UPS W STANDARD BATTERY 500VA 230V Proven Industrial UPS power protection for control applications and harsh environments. Main Input Voltage 230 V Other Input Voltage 220 V, 240 V Main Output Voltage 230 V Other Output Voltage 220 V, 240 V Rated power in W 325 W Rated power in VA 500 VA Output connector type Hard wire 3-wire (H N + E) 1 Battery type Lead-acid battery Provided equipment- CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable Input voltage limits 151...302 V adjustable, 160...285 V Number of input connectors 1 hard wire 3-wire (1P + N + E) Network frequency 50/60 Hz +/- 3 Hz auto-sensing Harmonic distortion Less than 5 % Maximum configurable power in VA 500 VA Maximum configurable power in W 325 W UPS type Line interactive Efficiency 94 % (full load) Output frequency 47...53 Hz for 50 Hz nominal sync to mains, 57...63 Hz for 60 Hz nominal sync to mains Acoustic level 55 dBA Heat dissipation 90 Btu/h Operating altitude 0...10000 ft Ambient air temperature for operation 0…40 °C ambient air temperature for storage -15…45 °C Storage altitude 0.0000000000…15240.0000000000 m IP degree of protection IP20 Relative humidity 0…95 % Storage Relative Humidity 0…95 %
