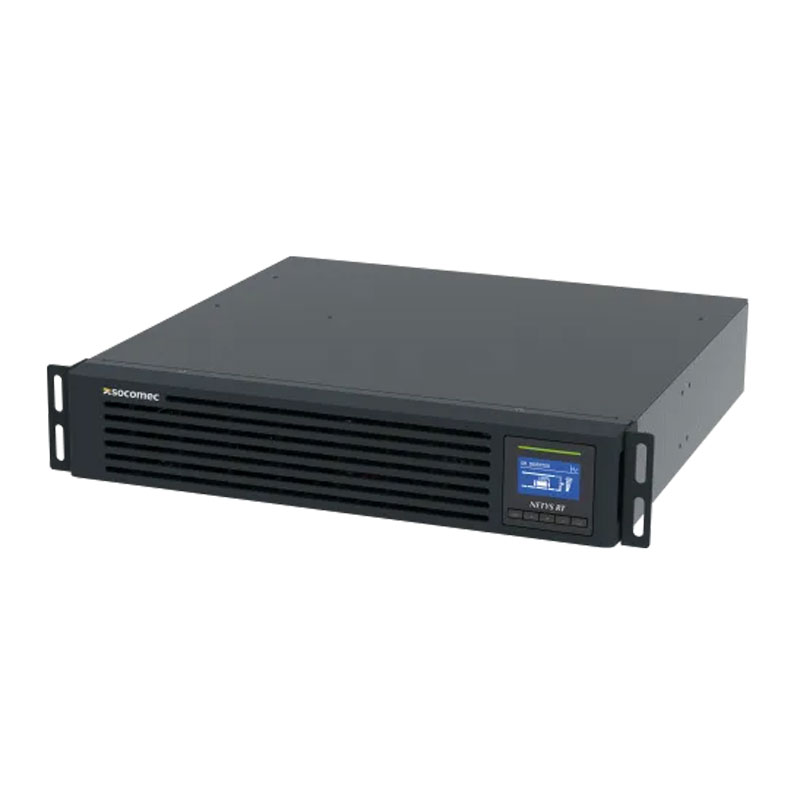

1000VA Online Li-Ion Rackmount/Tower UPS - 1000W

Overview

The UPS1000VA-ORM is a lithium-ion, online double-conversion uninterruptible power supply with a max capacity of 1000VA / 1000W and features 8 x IEC C13 power outputs. At only 2U height and 445mm depth, it is an incredibly compact UPS solution that can fit into small rackmount cabinets or be installed in tower mode. The UPS1000VA-ORM is an online UPS, also known as voltage-frequency independent, or double-conversion, meaning your connected devices are protected by continuous online power conditioning. Should mains power be lost or compromised, the UPS helps maintain service continuity for connected equipment, reducing the risk of downtime or disruption. This UPS also features a lithium-ion battery design, automatic and manual battery testing, cold start, remote power-off capability, USB interface and embedded dry-contact interface. Product features: • Ideal solution for protecting small servers, networking devices, surveillance and peripherals. • Assures service continuity to critical security systems and applications. • The space-saving rack/tower convertible design allows installation in tower mode or inside standard 19” rack cabinets, depending on the user’s needs. • No configuration needed on first startup. • Compact footprint (2U/85.5 mm) for installation in rack cabinets. • USB port and HID protocol as standard for direct interfacing with Windows systems®, without the need for additional specialist software. Protection for your data line • Load segmentation function to prioritize loads and manage critical situations. • Power off the UPS remotely • Connect up to 2 battery extension modules for greater capacity and uptime

• AC Voltage Regulation: Yes
• Alarm Output: Yes
• Battery Type: Integrated Lithium-Ion Battery
• Capacity: 1000VA / 1000W
• Dimensions: 2U, 438 x 445 x 85.5 mm (WxDxH)
• Est. Backup Time: ~14min
• Frequency Range (Battery Mode): 50Hz / 60Hz
• Interface: USB
• Local Communication Software: RS232 (MODBUS protocol), COMM slot, EPO input (RJ11 port), USB port and HID protocol as standard for direct interfacing with Windows systems®
• Noise level: <50dB
• Operating Environment: 0 ~ 40°C / 5% ~ 95%RH
• Output Sockets: 8 x 10A IEC 320-C13
