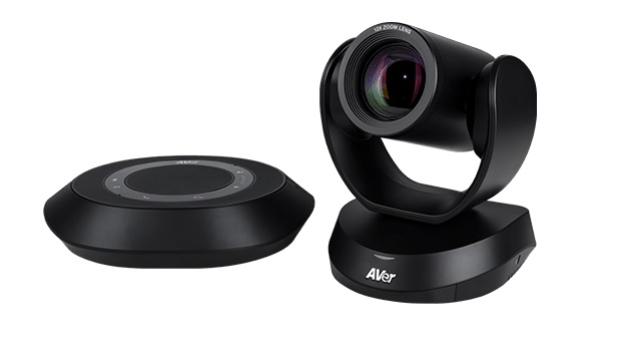

AVer VC520PRO2 FHD Camera + Speakerphone

Overview

The VC520 Pro2 is an expert-level conferencing system. Equipped with an 18X total zoom, advanced AVer SmartFrame, IP video streaming, single USB installation, and an extended speakerphone solution, the VC520 Pro2 brings you an extraordinary video conferencing experience. Specifications Camera Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps SmartFrame for automatic FOV adjustment to fit all participants Smart Gallery* function offers great visibility for individual participant in the meeting room Innovative Preset Framing: Follow presenter based on preset areas True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions Zoom: 24X* total zoom (12X optical zoom) Field of view(D/H/V): 84.5°/76°/48° Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele) Lens F#: 1.8 (wide) ~ 2.8 (tele) Mirror, Flip, AE, white balance: auto, manual override via PTZApp 2 Minimum focus distance: 1.5 m Standard tripod screw holes and Kensington slot People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage *Please use PTZApp 2 to set up Smart Gallery and 24X zoom. Motorised Pan & Tilt Movement Pan: ±170° Tilt: +90° (up) -30° (down) 10 camera presets (via remote control) Fast and quiet pan & tilt movement Video Format YUV, YUY2, MJPEG, NV12 Network video compression format: H.264 Network protocols: RTSP, RTMP Audio Format AAC-LC Network protocol: RTSP, RTMP Speakerphone Full duplex microphone array with echo cancellation Advanced noise suppression Dual-omnidirectional microphone array 3.5 mm phone-in jack 3.5 mm line out Speaker: 6W, Adjustable to 90dB SPL at 0.5 m Touch controls for volume down/up, mute, phone input (Microsoft Teams SKU w/o this function), call, hang-up, and, Teams button* Bridge phone-in and USB into one call Security: Kensington slot *Only available for the VC520 Pro2 Microsoft Teams edition Connectivity 12V/5A power adaptor Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain) USB 3.1 Type-B connector IP (RJ45) USB UVC 1.5 requires an additional firmware upgrade. Please contact technical support for more details. 3.1 Gen 1 Type-B, backward compatible with USB 2.0 UVC (USB video class) 1.1 UAC (USB audio class) 1.0 UVC1.5* Control IR remote control VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command) Remote side: VISCA over IP, IP (RJ45) UVC/UAC plug-and-play WebUI: Browser IP access via Chrome (does not support Internet Explorer) PTZApp 2 System Requirements Windows® 7/10/11 Mac OS X 10.14 or higher Chromebox 3 version 94.0.4606.114 or later Hardware Specs 3.2 GHz Intel® Core™ i5-4460 Processor or higher 4 GB RAM or more USB 3.1 port, b

• 1080p PTZ Conference Camera with POE IP video streaming
• Support Video and Audio with One USB Cable
• Spot Every Detail with an 18X Total Zoom
• Improve Meeting Safety & Efficiency with SmartFrame
• Livestream Videos Anytime, Anywhere
• Zoom and ClickShare Certified
