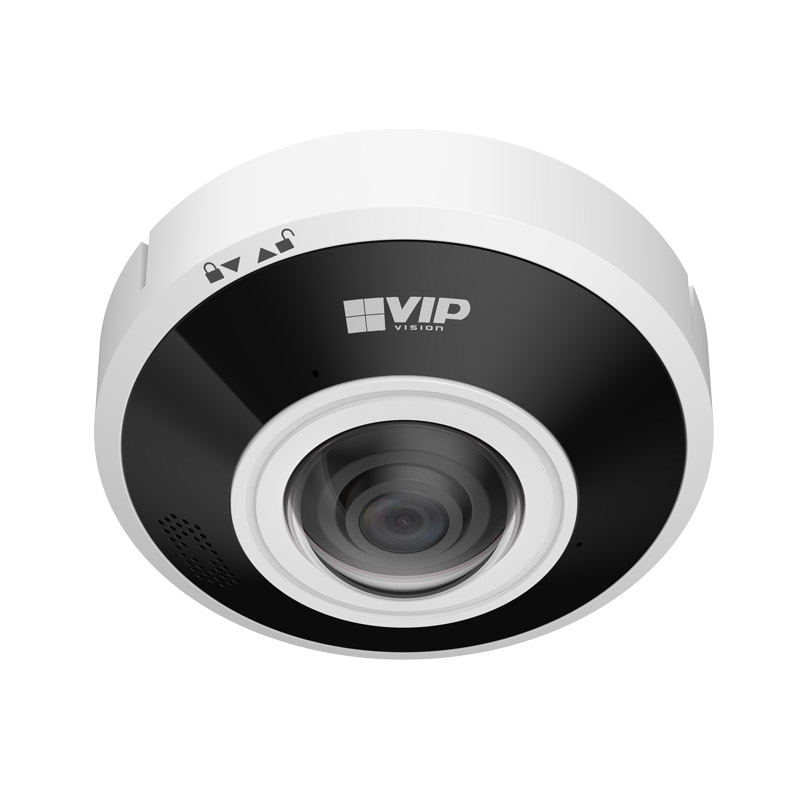

Specialist AI Series 6.0MP People Counting 360° Fisheye Dome

Overview

The VSIPFE-6IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting and heat mapping functions. Receive real-time alerts when a certain number of people enter an area with AI people & area counting or set up heat map to observe the amount of time people spend in areas. Camera features: • Stream up to 6.0MP (2560 x 2560) at 25fps • Circular fisheye lens with 360° viewing angle • Fisheye front & back-dewarping modes • Virtual PTZ, panorama, & camera split dewarp modes • Up to 15m infrared range; true day/night (auto ICR) • Set up AI-enhanced people tracking for real-time alerts, statistics and business analytics • Heat map, tripwire, intrusion & regions of interest • MicroSD card slot for edge recording up to 1TB • IP67 weather rated & IK10 vandal rated housing • Built in mic and audio/alarm inputs and outputs * Check the Supported NVR specification to see if Fisheye Dewarping is supported by that NVR model

• Alarm Interface: 1 Channel Input (5mA 3VDC ~ 5VDC) / 1 Channel Output (300mA 12VDC)
• Audio Interface: 1 Channel Input (RCA), 1 Built-in Mic / 1 Built-in Speaker / 1 Channel Output / Audio Compression: PCM, G.711A, G.711Mu, G726, AAC
• Bit Rate: H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
• Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR) / Adaptive bit rate (ABR)
• Camera Type: Fisheye
• Day/Night: Auto (ICR) / Color / B&W
• Detect (25px/m): 33.6m
• Dewarping Modes: Original (no dewarp) / Panoramic / Virtual PTZ / Original + 3 split, + 4 split / Front-dewarp / Back-dewarp
• Dimensions: Ø122mm x 53.3mm
• Edge Storage: MicroSD Card (up to 1TB) / NAS / FTP / SFTP
• Effective Pixels: 2560 (H) x 2560 (V)
• ePoE: No
