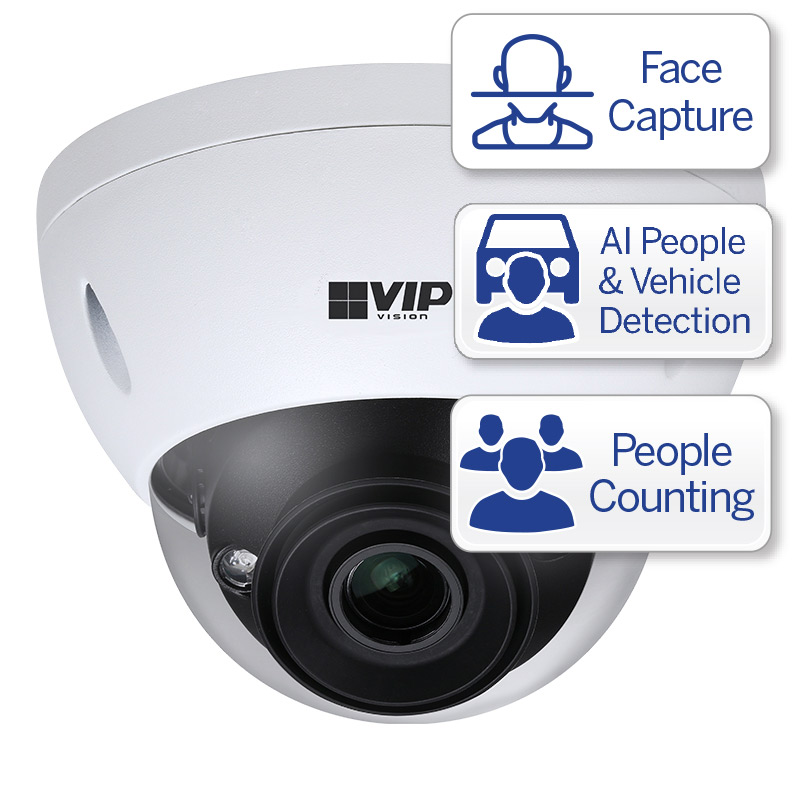

Ultimate AI Series 4.0MP Motorised Vandal Dome

Overview

The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time. Camera features: • Stream up to 4.0MP (2688 x 1520) at 25fps • 2.7 ~ 12mm motorised lens with 115 ~ 47° viewing angles • H.265 encoding for efficient storage & streaming • 40m infrared range; true day/night (auto ICR) • Back/highlight compensation & true WDR (140dB) • MicroSD slot for recording at the edge up to 256GB • Internal face detection & capture to extend recognition • Perimeter Protection to identify people & vehicles • Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR • Intelligent AI-enhanced people counting for retail capacity management and flow control • Extend PoE up to 800m (requires ePoE NVR/switch) • IP67 weather rated & IK10 vandal rated housing

• Alarm Interface: 2 channel in: 5mA 5VDC / 1 channel out: 300mA 12VDC
• Audio Interface: 1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723
• Bit Rate: H.264: 32Kbps ~ 8192Kbps / H.265: 32Kbps ~ 8192Kbps
• Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
• Camera Type: Dome
• Category: Network Surveillance
• Day/Night: Auto (ICR) / Color / B&W
• Detect (25px/m): 58m (wide) / 131m (tele)
• Dimensions: Ø159mm x 118mm
• Edge Storage: MicroSD Card (up to 256GB) / NAS / FTP /SFTP
• Effective Pixels: 2688 (H) x 1520 (V)
• ePoE: Yes
